450输入电源Power suppiy 380V 50Hz 输入
| 输入电源Power suppiy | 380V 50Hz |
| 输入功率Input power | 6.6Kw |
| 工作气压Air pressure | 0.5~0.8Mpa |
| 锯片转速Blade rotational speed | 2800r/min |
| 锯片规格Saw blade specification | D=500mm d=30mm |
| 锯切长度Cutting length | 380-4200mm |
| 锯切角度Cutting angles | 90°、45°, 45° |
| 外形尺寸Outside dimension | 4800x1170x1500mm |

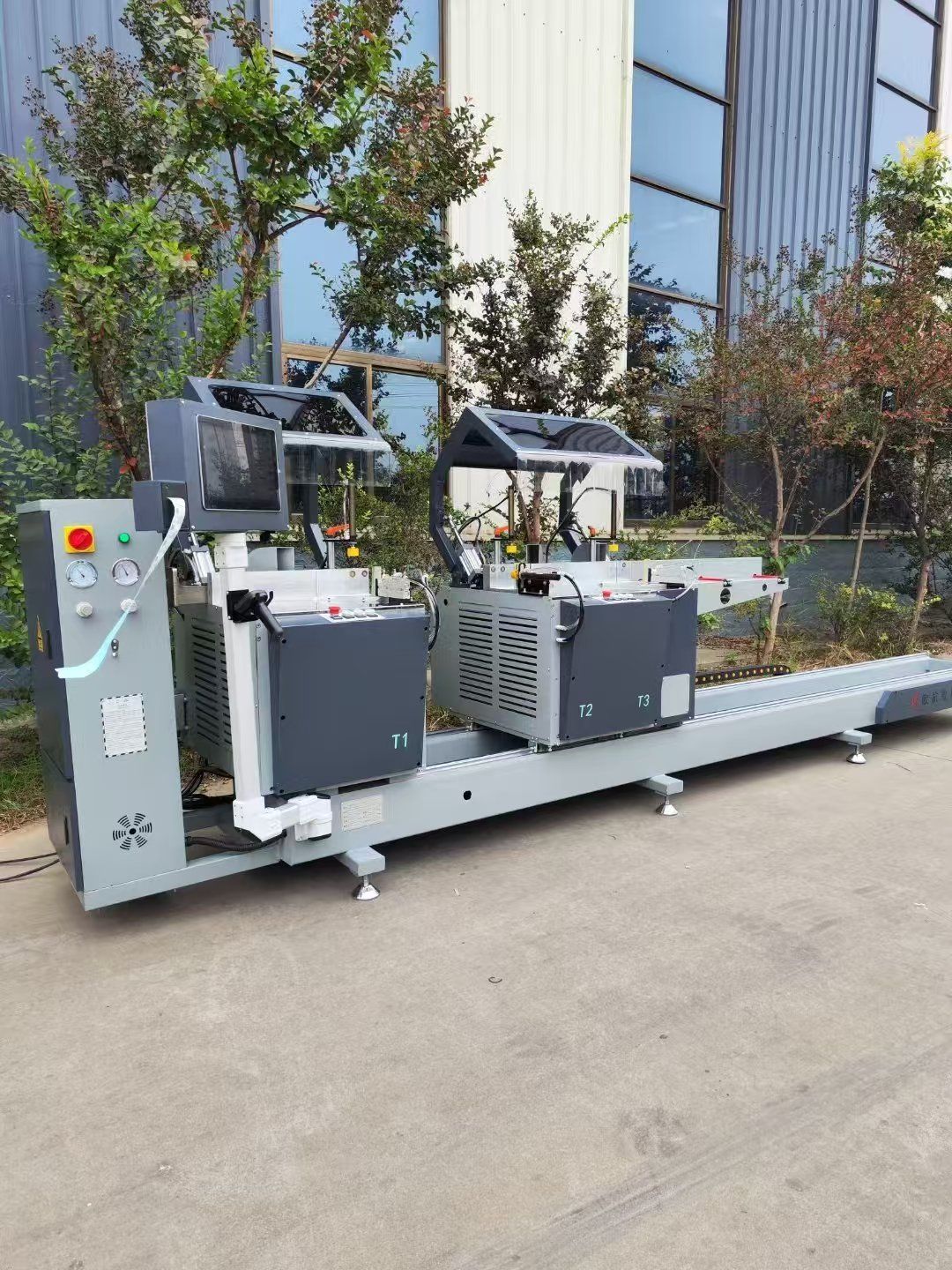

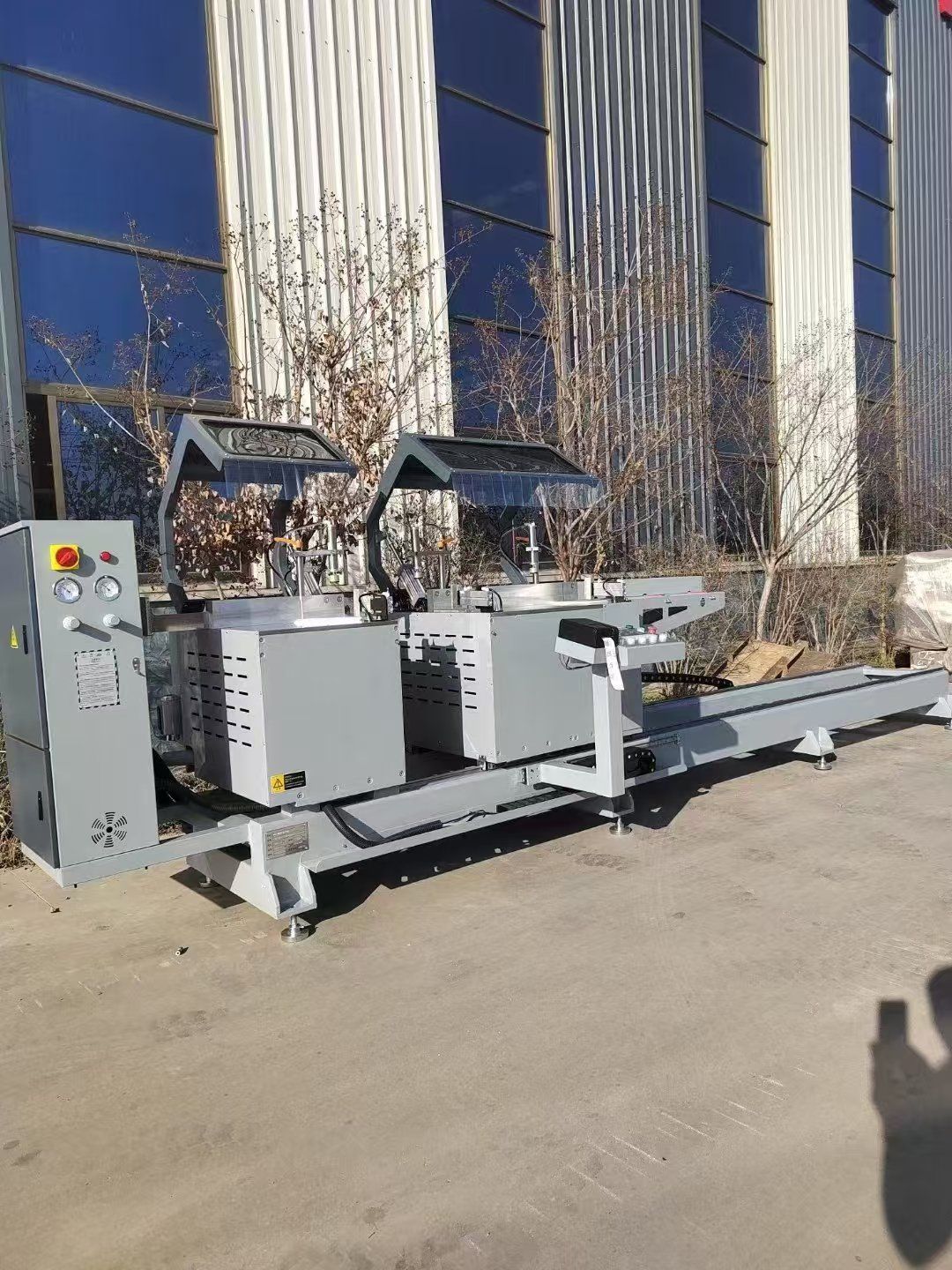

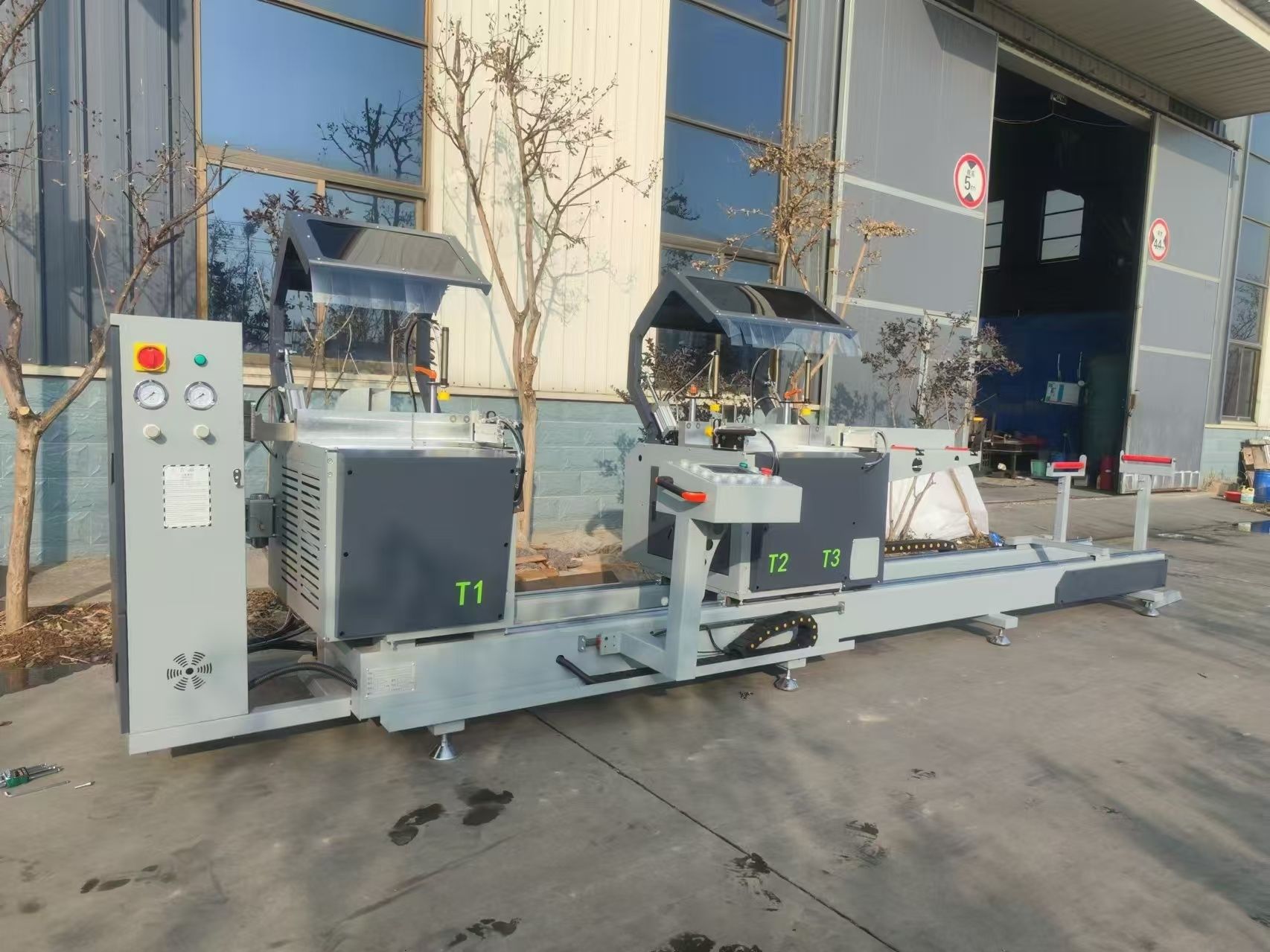

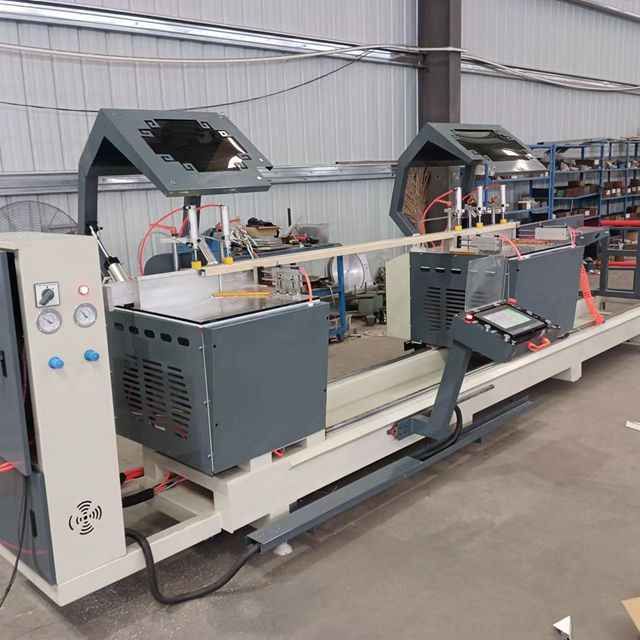

CNC 500 triple saw for doors and Windows. Two 45 degree head, a 90 degree head, servo motor efficient positioning, square rail spindle motor to improve cutting accuracy, left and right movement accuracy up to 0.03 mm, high configuration, high precision durable, the use of time and labor saving to reduce labor, mainly used for sliding doors, flat doors, sliding doors, PT doors, titanium magnesium alloy doors fast cutting, Do not need to do pad one-time molding, easy to operate
