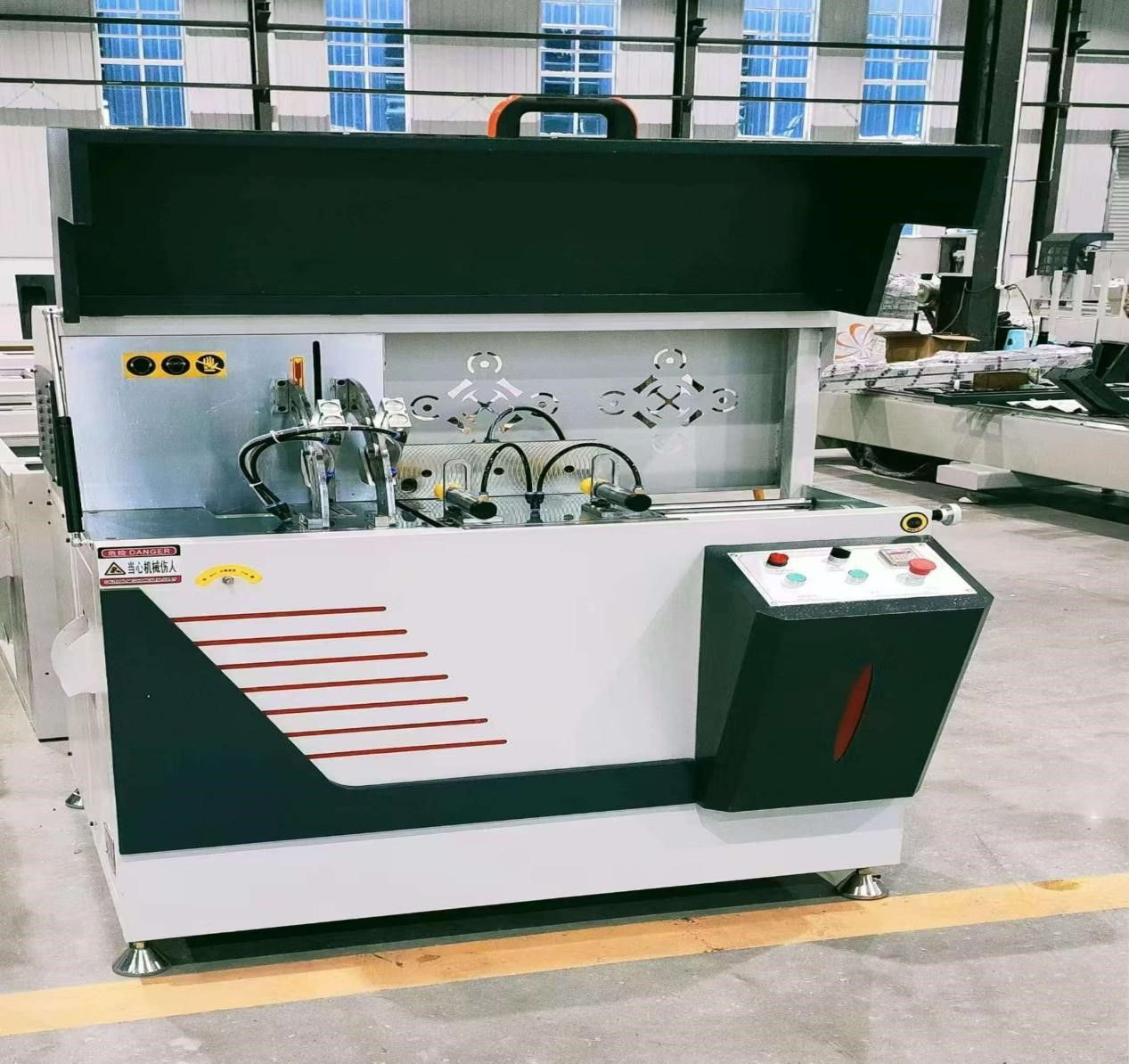

Automatic Corner Code Cutting Saw For Aluminum Doors And Windows Model: LJJ-140

Power supply 380v/50Hz Input power 3.0kw Air pressure 0.6-0.8Mpa

  • Color: Default Color
  • Size: Default Size
  • Origin: China
  • Usage: Default Usage
  • Type: Default Type
  • Efficiency: 99.9% Type
New

Description:

Power supply 380v/50Hz
Input power 3.0kw
Air pressure 0.6-0.8Mpa
Blade rotational speet 2800r/min
Saw blade specification D=450mm   d=30mm
Cutting length 3-100mm
Blade feed rate 0-3mm/min
Cutting width x height 135x200mm
Outside dimension 1480x1550x1350mm

The machine is operational, reliable, technologically advanced and easy to maintain.

· The machine is mainly used for special equipment for cutting aluminum door and window corner code profiles, and can be used for cutting and cutting thickened and lengthened curtain wall profiles and plastic profiles.

· The tool adopts imported cemented carbide saw blade, which has high cutting speed, high productivity and high machining accuracy.

· The feed motion pair of this machine adopts linear motion bearing, which has low motion resistance and high precision.

· The feeding mechanism adopts automatic feeding system, which is stable and reliable, and has high efficiency.

· Imported PLC programmable control system and digital display device.

· It is suitable for mass cutting production of aluminum doors and windows and plastic profiles.

· High degree of automation, work clamping, saw blade advance and retreat using pneumatic system control, easy operation, safe and reliable, high productivity.
